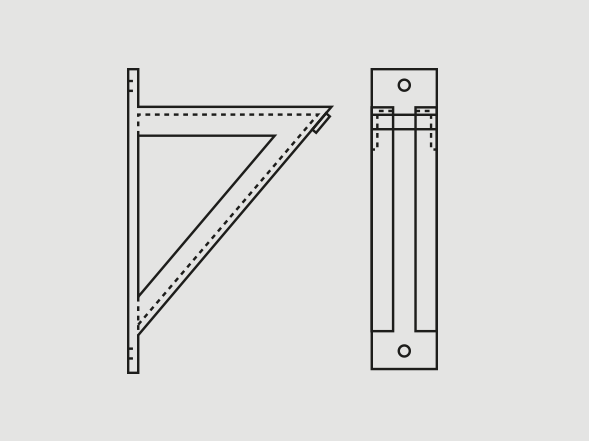

Medium-Welded Steel Bracket

Service: Supports pipe systems where the maximum load will not exceed 1500 lbs. per bracket. The piping system may be supported on the horizontal surface using any of the rollers or anchor chairs shown in this catalog and auxiliary piping systems may be carried on the support rods hung between the angles of the bracket. The medium welded bracket may be bolted to the wall and a back plate of such size and thickness as to properly distribute the weight over the wall should be provided.

Material: HDG or zinc-plated

Ordering: Specify size number, figure number and name
